- Compatible with all Siemens KNX IoT / Thread devices
- Extends the wireless range by bridging from wireless thread communication to wireless thread communication (also called repeater functionality)
- Reliable network operation with mesh network functionality
- Mains powered by external power supply adapter (AC 100...240 V)
- Clear status indication with integrated LEDs
- Dimensions: 92 x 26 x 77 mm
Siemens - Modules KNX IoT
OCT100.RRépéteur KNX IoT
The Thread mesh extender provides IoT connectivity and enables communication via Thread.
OCT200.KNBAPasserelle KNX IoT
KNX IoT to BACnet IP gateway
- Gateway between KNX IoT devices and BACnet IP devices/systems
- Integrated wireless communication via KNX IoT over Thread
- BACnet IP communication via integarted Ethernet port
- Easy commissioning and configuration of KNX IoT devices and BACnet IP communication via integrated Web UI
- Mains powered by external power supply adapter (AC 100...240V)
- Clear status indication with integrated LEDs
- Dimensions: 117 x 117 x 43 mm
QFA2890/WISonde T°C, %HR KNX IoT
Wireless room sensor for temperature & humidity
- Wireless communication via KNX IoT over Thread
- Measurement accuracy up to ± 0.3 °C & ± 2 % r.h.
- Up to 10 years battery lifetime (under normal operating conditions)
- Dimensions: 88 x 88 x 14 mm
QPA2892/WISonde T°C, %HR, CO2 KNX IoT
Wireless room sensor for temperature, humidity and CO2
- Wireless communication via KNX IoT over Thread
- Measurement accuracy up to ± 0.3 °C, ± 2 % r.h. & ± 50 ppm CO2
- Up to 7 years battery lifetime (under normal operating conditions)
- Dimensions: 88 x 88 x 18 mm

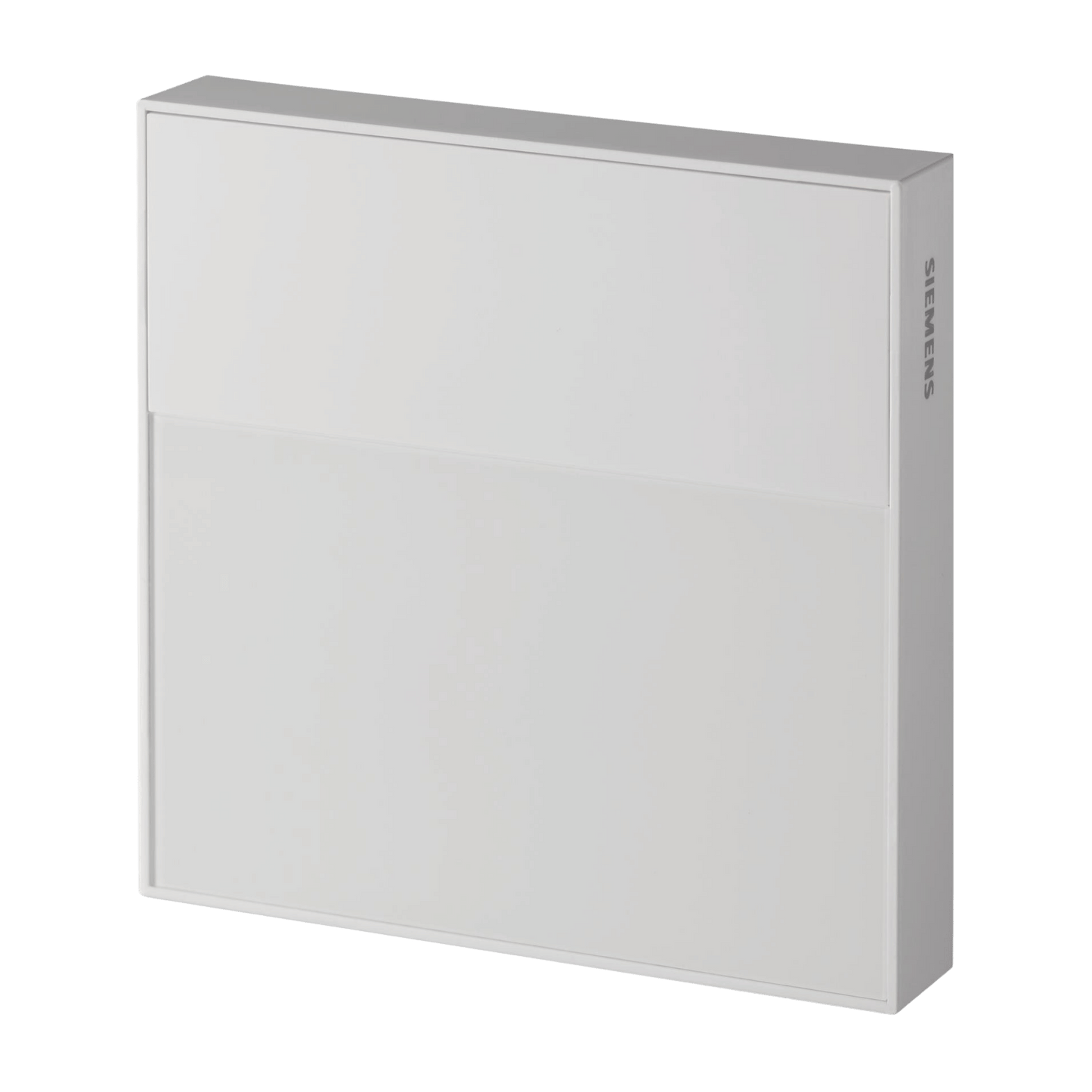

QAA2890/WISonde température ambiante KNX IoT
Wireless room sensor for temperature
- Wireless communication via KNX IoT over Thread
- Measurement accuracy up to ± 0.3 °C
- Up to 10 years battery lifetime (under normal operating conditions)
- Dimensions: 88 x 88 x 14 mm
