N 263E11

16 entrées pour 12...230 V, 12...115 V CC

N 262E11

16 entrées pour contacts flottants

N263 D31

Per input one AC or DC contact in the range of 10...230 V
Per input direct operation function on the device for simulation of input status and indication oft the input status via LED
Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation
Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
Max. 100 m length of the connection lines with twisted pair cables
Bus-powered electronics
Housing: plastic, color RAL 7035 (light grey), N-system
DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715
Type of protection: IP 20
Max. width 4 MW (1 MW = 18 mm)

N 262D31

One dry contact per input
Per input direct operation function on the device for simulation of input status and indication oft the input status via LED
Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation
Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
Max. 100 m length of the connection lines with twisted pair cables
Bus-powered electronics
Housing: plastic, color RAL 7035 (light grey), N-system
DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715
Type of protection: IP 20
Max. width 4 MW (1 MW = 18 mm)

N263 D51

Per input one AC or DC contact in the range of 10...230 V
Per input direct operation function on the device for simulation of input status and indication oft the input status via LED
Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation
Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
Max. 100 m length of the connection lines with twisted pair cables
Bus-powered electronics
Housing: plastic, color RAL 7035 (light grey), N-system
DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715
Type of protection: IP 20
Max. width 8 MW (1 MW = 18 mm)

N 262D51

One dry contact per input
Per input direct operation function on the device for simulation of input status and indication oft the input status via LED
Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation
Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
Max. 100 m length of the connection lines with twisted pair cables
Bus-powered electronics
Housing: plastic, color RAL 7035 (light grey), N-system
DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715
Type of protection: IP 20
Max. width 8 MW (1 MW = 18 mm)

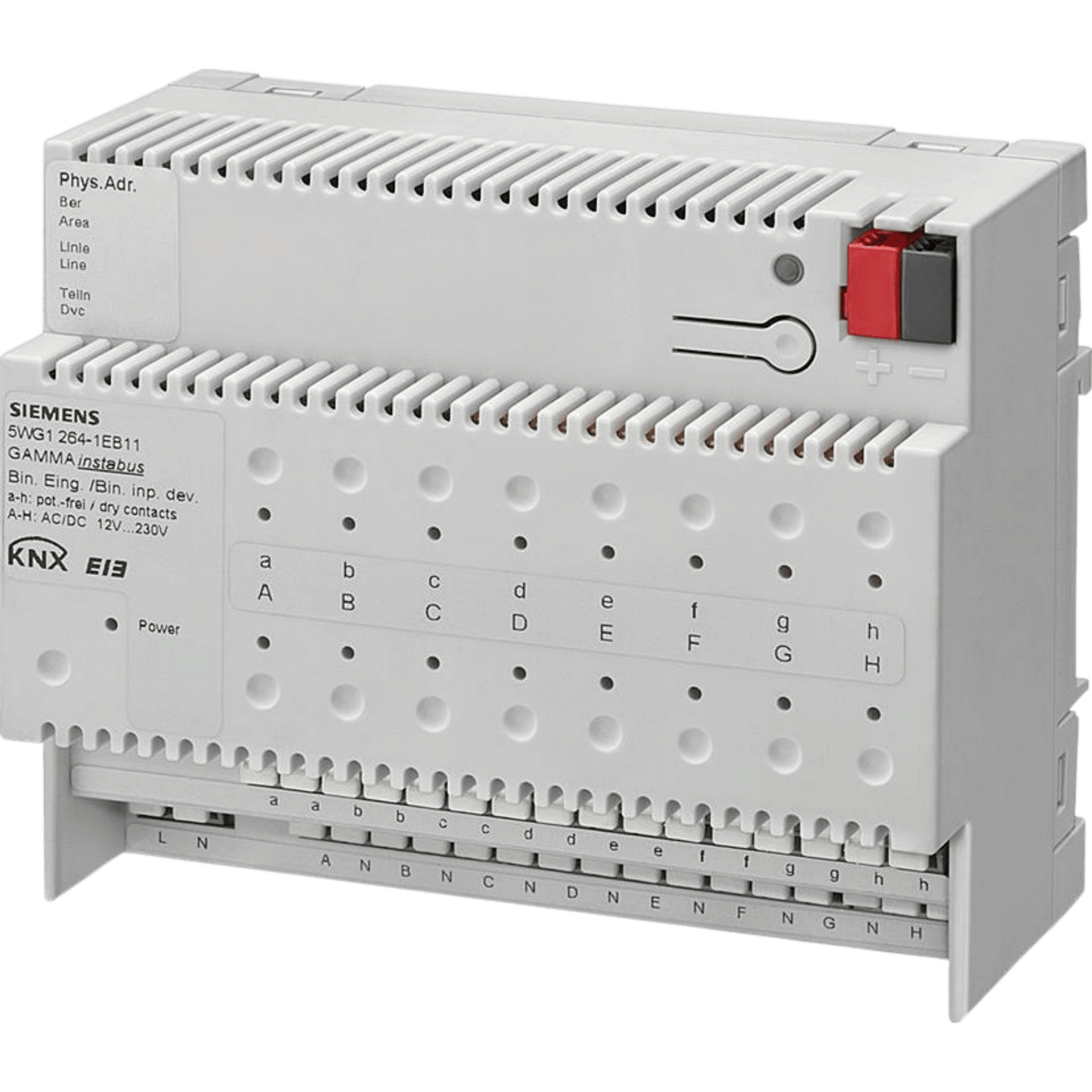

N 264E11

8 entrées pour 12...230 V CA/CC pour contacts flottants
