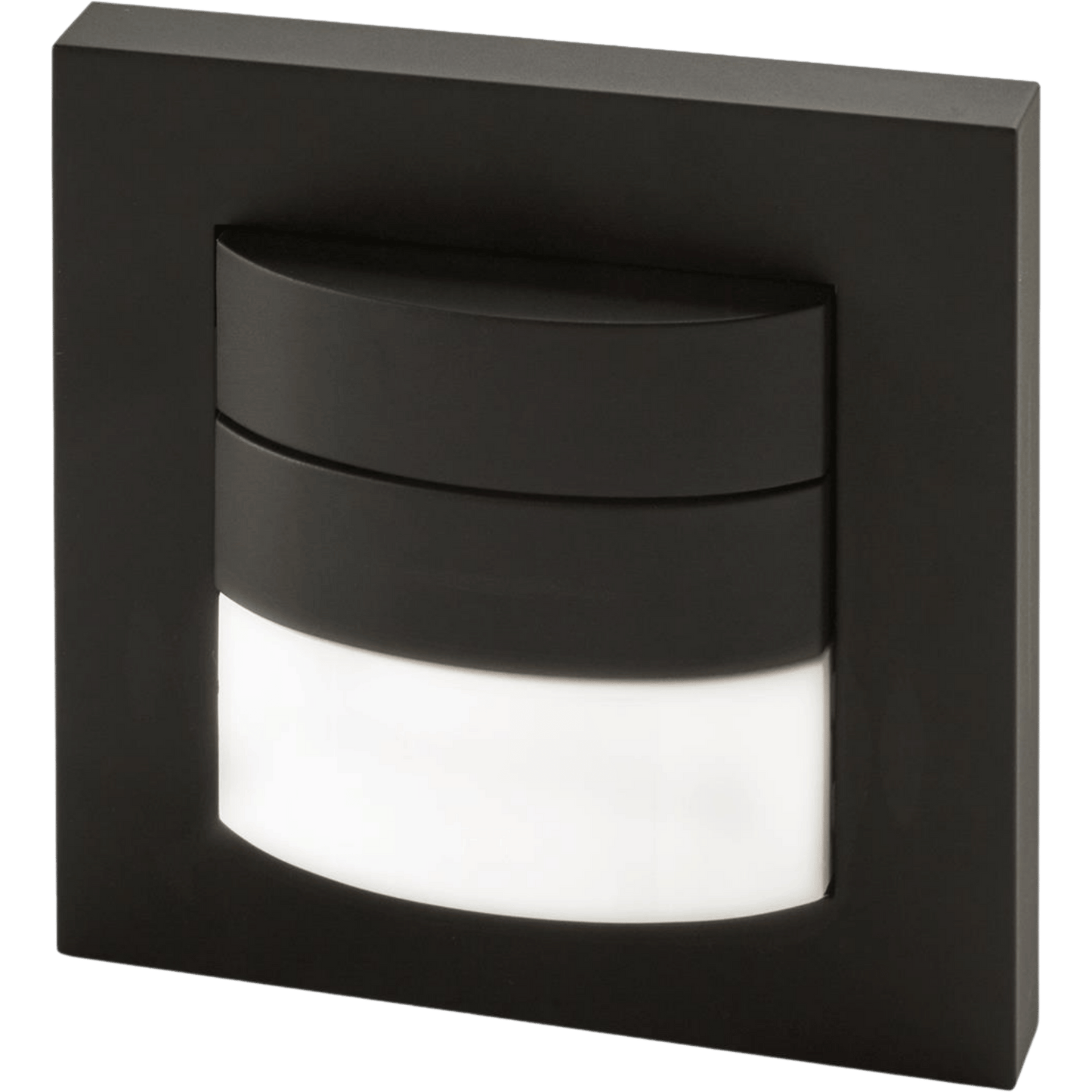

- Passive infrared detector for wall mounting for stairwells and corridors
- 180° angle motion detection area
- Motion detection up to 18 m frontal and 4-14 m (depending on the angle of detection) laterally
- Its own frame included in the packaging
- Brightness, temperature and humidity measurement
- Integrated pushbutton for overriding the controlled light or for sending commands for lights, blinds and scenes
- Integrated bus coupler, bus connection via bus terminal, operation of electronics with bus voltage
- LED for display of detected motions in the delivery state for easy testing
- Mounting on the wall in flush-mounting box at 1,10 height, valid for conduit boxes type CEE/VDE, China and Switzerland
- Color white (similar to RAL 9010)
- Protection type: IP 20
- 4 light (movement detector) channels
- Selectable outputs per channel (on/off, dimming level, scene)
- Automatic or semiautomatic mode
- Parallel operation of more movement detectors possible
- Brightness function with configurable treshold and offset
- Basic illumination with dimming, so that at the end of the detection the sensor can set the light to a defined dimming level for a configurable time
- Day/night function, allowing the outputs and trigger times of the light channel to be different for day or night
- Locking object for each channel
- Adjustable range for movement detection
- 2 indepedent thresholds for temperature and humidity
- Constant light control
- Presence and absence functions, brightness independent
- HVAC function to send room operating modes, brightness independent
- Twilight treshold, movement independent
- Sabotage (device function)
- Object for dew point alarm
- Comfort field for a thermal comfort output
- Two logic operation (AND/OR/EXOR)
