- For control of drives with a DC motor for DC 24 V
- Two relays per output for polarity switching of the output voltage
- Rated contact operating voltage DC 24 V
- Rated contact current: 6 A
- Electronics for detection of the actuation of an electromechanical and electronic limit switches
- Automatic travel time determination via current detection
- Per actuator channel direct operation function on the device for driving solar protection up/down, stop command and slat adjustment
- Two status LEDs per actuator channel to indicate the direction of travel and an override
- Button on the device front for deactivation of the direct mode operation and LED to indicate activation direct mode operation
- Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
- Two terminals per actuator channel for motor connection (up, down)
- Two terminals on the device to connect the DC 24 V (+/-) to supply the load circuits
- Bus-powered electronics
- Housing: plastic, color RAL 7035 (light grey), N-system
- DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715
- Type of protection: IP 20

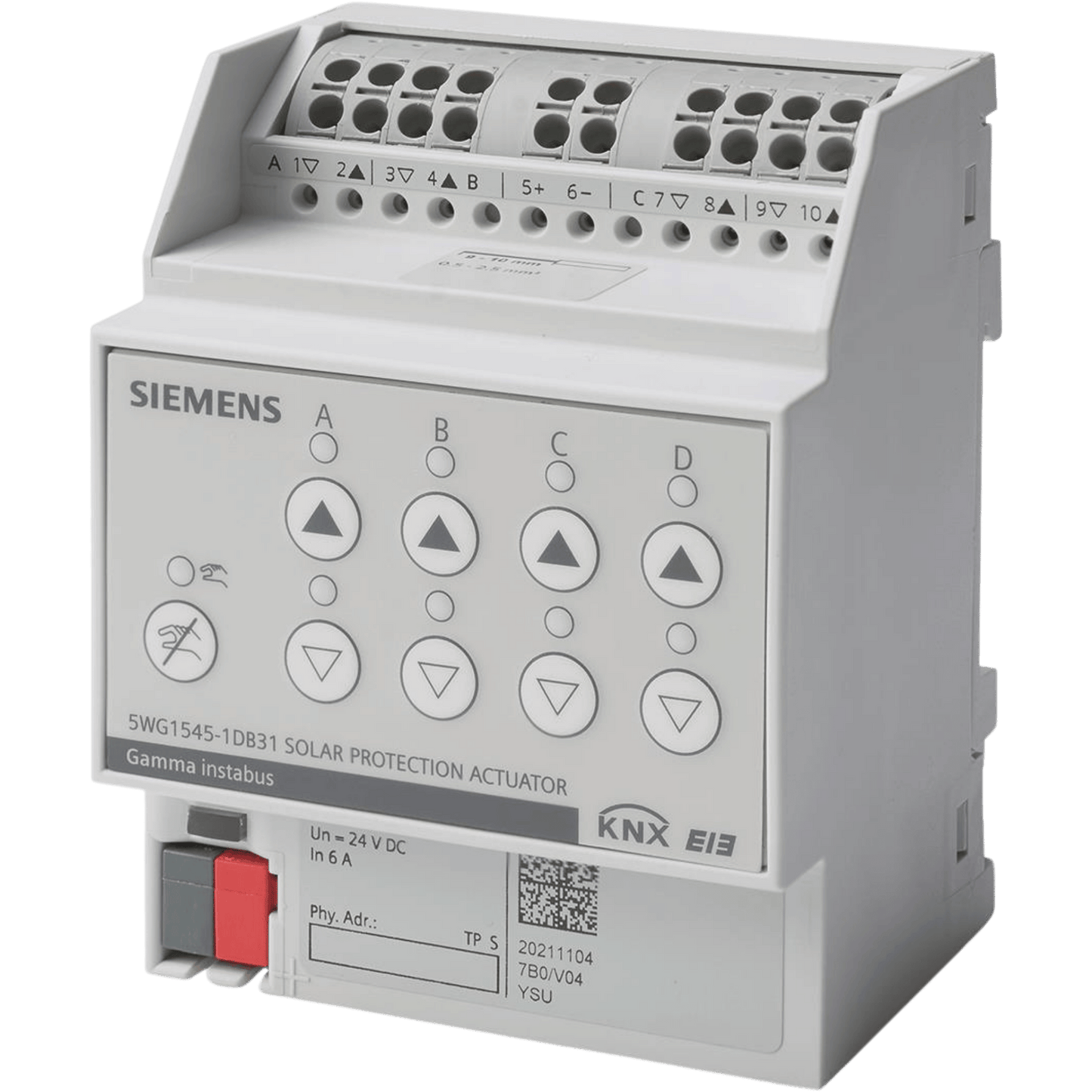

Siemens - Actionneurs de Protection Solaire 24 V - RailDIN
N 545D31
