- For control of drives with a DC motor for DC 24 V
- Two relays per output for polarity switching of the output voltage
- Rated contact operating voltage DC 24 V
- Rated contact current: 6 A
- Electronics for detection of the actuation of an electromechanical and electronic limit switches
- Automatic travel time determination via current detection
- Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
- Two terminals per actuator channel for motor connection (up, down)
- Two terminals on the device to connect the DC 24 V (+/-) to supply the load circuits
- Bus-powered electronics
- Housing: plastic
- As built-in device for mounting in a separately to be ordered Control Module Box AP 118
- Type of protection: IP 20

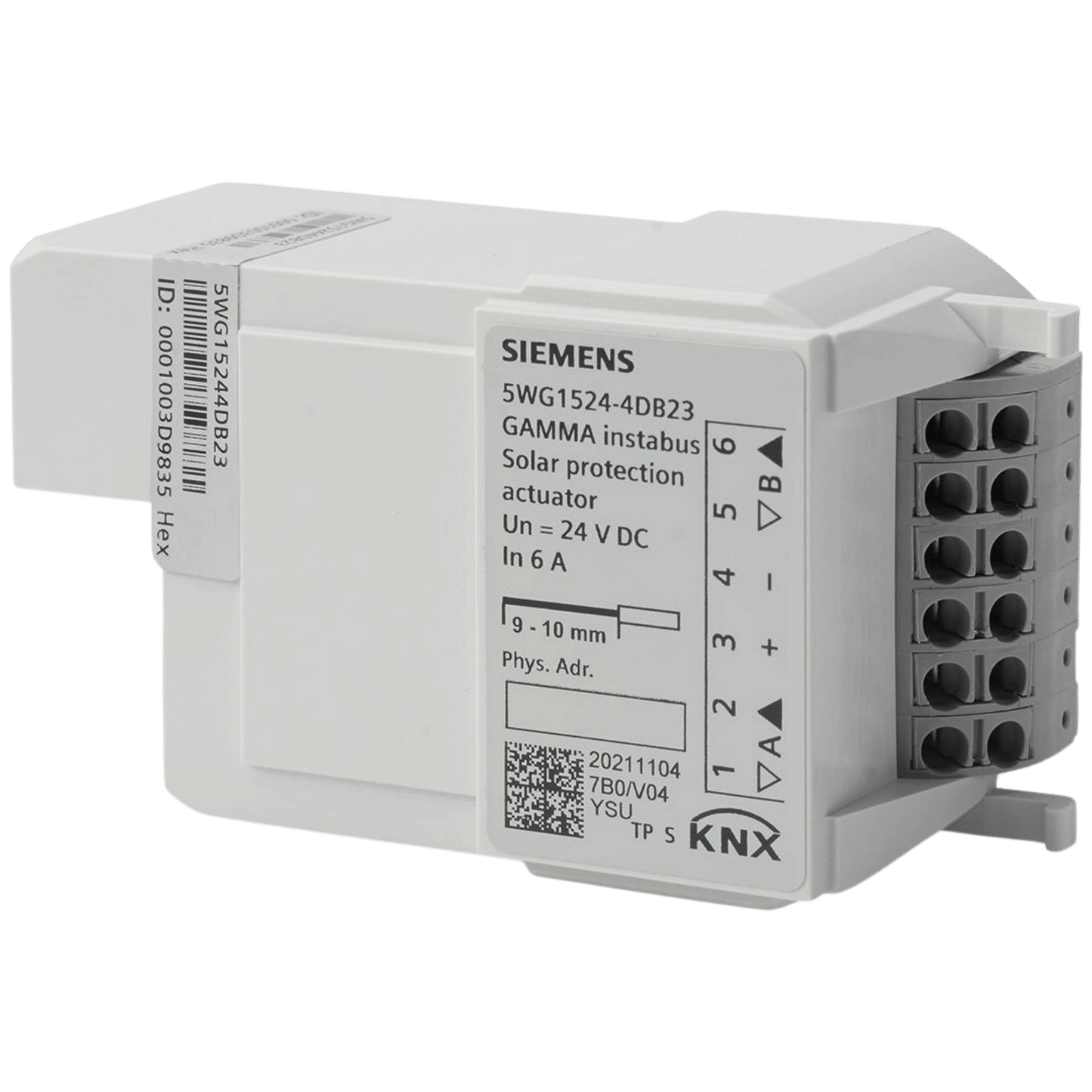

Siemens - Actionneurs de Protection Solaire 24 V - Encastré
RL 524D23
