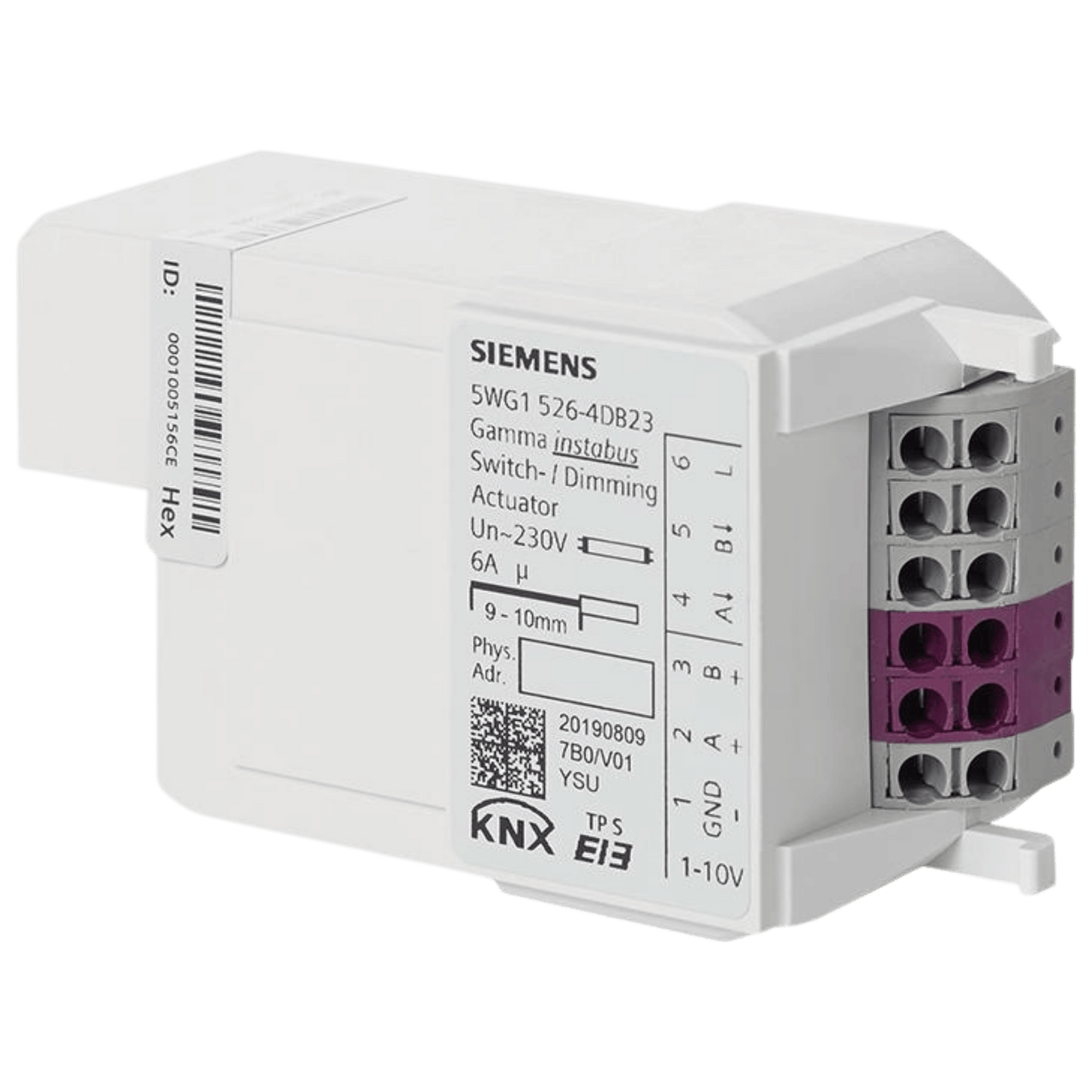

RL 526D23

  • One relay contact per output as switching element
  • Rated contact operating voltage AC 230 V
  • Rated contact frequency: 50/60 Hz
  • Rated contact current: 6 A
  • Control voltage output DC 1-10 V (passive) per channel for controlling dimmable electronic ballasts
  • Maintenance-free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5 mm²
  • Bus-powered electronics
  • Housing: plastic
  • Dimensions (L x W x H): 86,5 x 47,8 x 36,2 mm
  • As built-in device for mounting in a separately to be ordered Control Module Box AP 118 or Room Control Box AP 641
  • Type of protection: IP 20
